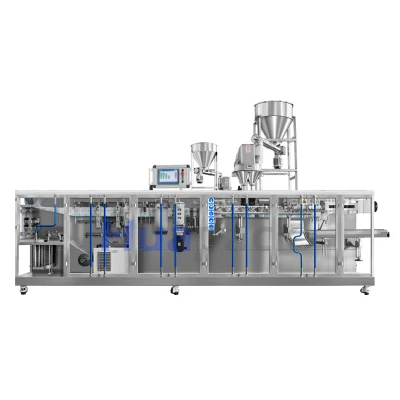

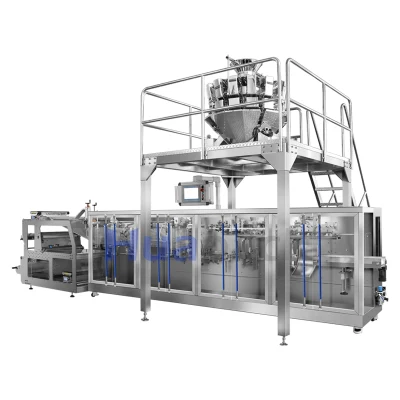

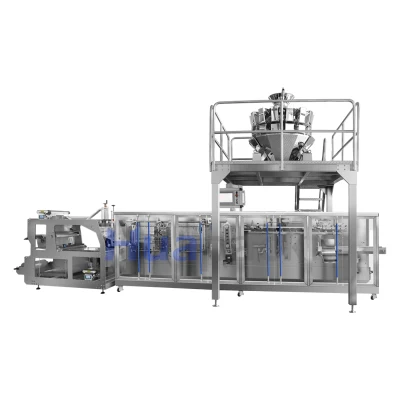

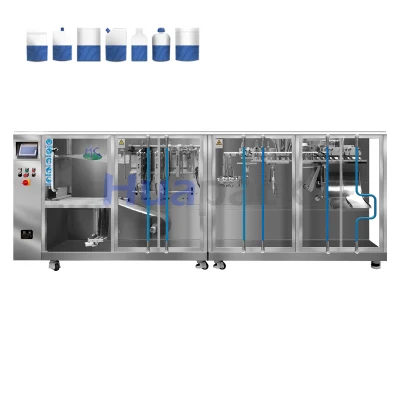

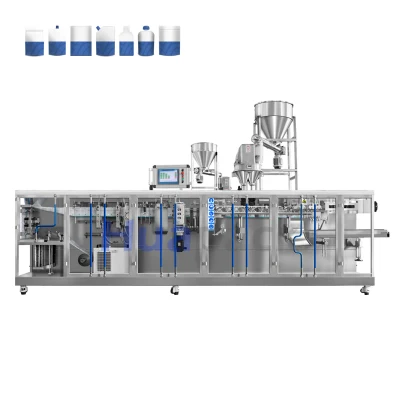

Horizontal flat bag form fill seal sachet packing machine
Huacheng HC-N series designed for sachet with functions of making bag filling and sealing ,hanging hole,special shape,zipper or spout.Adopt Euro technology improving along with Chinese production status. coming up with machine high quality with competitve price.
Horizontal Form Fill Seal machines are packaging machines in which filling, and sealing of a package take place on the same machine. Filling occurs through the open-top part of the pouch.
HC packing machine has the wide range of Horizontal Form Fill and Seal machines in the market.
Our machines cover all the applications and are customized to be adapted to our customers' needs.
The design is based on the modular frame construction, composed of three independent modules: unwinding, pouch forming and dosing-sealing.
Pouches/sachets that are made using HFFS technology are less expensive than Pre-made ones.
Simplex model | flat bag | 180N | 130N/130NZ | 110N/110NZ | 240N |
Parameters | Min(W*H) | 75×85mm | 60×80mm | 20×80mm | 75×85mm |
Max(W*H) | 180×225mm | 130×180mm | 50×100mm | 240x330mm | |
packing vol max | 400ml | 160ml | 100ml | 2000ml | |
speed(bag/min) | ≤70 | ≤70 | ≤70 | ≤60 | |
film thickness | 60-140ų | 60-130ų | 60-130ų | 60-180ų | |
film roll outer.dia | 500mm | 500mm | 500mm | 500mm | |
film roll inner.dia | 70-80mm | 70-80mm | 70-80mm | 70-80mm | |
machine size (mm) | 3500×970×1450 | 2850×920×1460 | 2650×900×1460 | 4500×9700×1460 | |
work condition | machine weight | 900kg | 800kg | 800kg | 2100kg |
temperature | -10ºC-+55ºC | -10ºC-+55ºC | -10ºC-+55ºC | -10ºC-+55ºC | |
moisture | below 85% | below 85% | below 85% | below 85% | |
vol. | AC380V,50Hz | AC380V,50Hz | AC380V,50Hz | AC380V,50Hz | |
power | 5Kw | 3.5Kw | 3.5Kw | 5.5Kw | |
air | 200L/min | 100L/min | 100L/min | 300L/min |
Duplex model , making double doypack bags per time
Duplex model | 180ND | 360N quadruplex | 240N | 240ND |
paramters | 70×90mm | 75x80mm | 75×85mm | 75×85mm |
90×180mm | 130x180mm | 240x330mm | 120×225mm | |
100ml | 100ml | 2000ml | 2000ml | |
≤140 | 4*30-4*50 | ≤60 | 60-120 | |
70-130ų | 70-130ų | 60-180ų | 60-180ų | |
500mm | 500mm | 500mm | 500mm | |
70-80mm | 70-80mm | 70-80mm | 70-80mm | |
3500mm×970mm×1350mm | 6100mm×1100mm×1400mm | 4500mm×9700mm×1460mm | 5200mm×1100mm×1460mm | |
950kg | 1800kg | 2100kg | 2100kg | |
work condition | -10ºC-+55ºC | -10ºC-+55ºC | -10ºC-+55ºC | -10ºC-+55ºC |
below 85% | below 85% | below 85% | Below 85% | |
AC380V,50Hz | AC380V,50Hz | AC380V,50Hz | AC380V,50Hz | |
0.6Mpa | 0.6Mpa | 0.6Mpa | 0.6Mpa | |
300L/min | 300L/min | 300L/min | 300L/min | |
5.5Kw | 9Kw | 5.5Kw | 5.5Kw |
1) HMI Display includes instruction manual and troubleshooting
2)Parallel motion of the vertical sealing bars enables for improved sealing quality and easier maintenance.
3)Full servo motion : This smart servo-control system allows independent operation between the different stations, offers great reliability and little maintenance.
4)Walking beam: transport system consisting of beams and grippers. They hold the pouches and transport them through the different stations, from the pouch forming to the pouch closing.
5) Multiple steps of sealing are needed to guarantee sealing quality
6) filling : allow hot and cold filling
1.film unwinding design:film align well
2. Servo film pulling 1,servo pulling is stable and easy to change sizes 2. strong knife
3. relatively light weight working beam, faster speed,long time service life
1.coding | cold press code or touch code form, date QR code, bar code can be realized |
2.easy notch | easy notch cutting |
3 Hanging hole | round hole or euro hole |
4.eyemark tracking | Advanced eyemark tracking system |
5.zipper (optional) | adding zipper device |
6.top spout (optional) | adding top spout inserting station |
7.corner spout (optional) | adding corner spout inserting station |
8.double time filling | increase the speed by double-head filling for big package |
9.bag support | adding bag support for big package |
10 conveyor | select the finished product conveyor belt to transport |
Our strong knowledge of this industry allows us to provide optimal customized solutions to each customer with the highest level of features, and the finest quality & Innovative packages.
We are committed to running our business in a sustainable way. And we sincerely willing to cooperate with enterprises from all over the world in order to realize a win-win situation since the trend of economic globalization has developed with an irresistible force.
1.We can provide single machine or whole packing system solutions and owns professional manufacturing equipment as well as a full range of technical support and after-sale service.
2. OEM, Customized can be all accepted.
3. 1 year warranty for main machine and 1 year spare parts
4. Contact us any time when you feel free.
